Les Jardins de Magog

Here are some plans extracted from one of the technical feasibility studies made for one major addition to the Jardins de Magog.

It is about projecting an addition for about 40 new bedrooms, on two stories with addition of an elevator.

Four drawings are showed here :
The existing first and the second floors and new first and second floors.

The addition plans are thought to be constructed either in pre-fabricated modular construction either conventional construction, as it shows a very logical and repetitive frame for the bedroom units and new toilet.

A firebreak wall would separate and would protect the new and existing sectors.

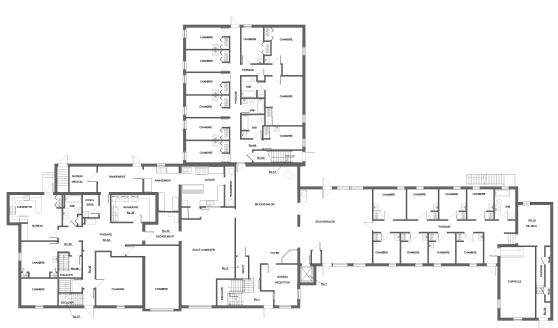

Existing first floor plan

New first floor plan

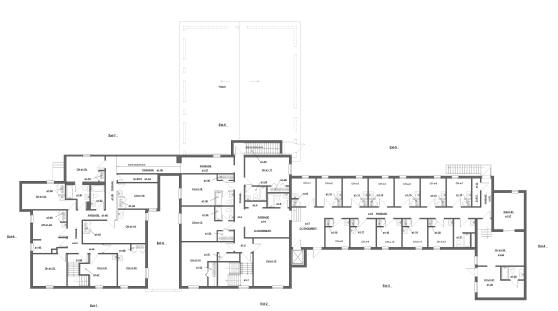

Existing second floor plan

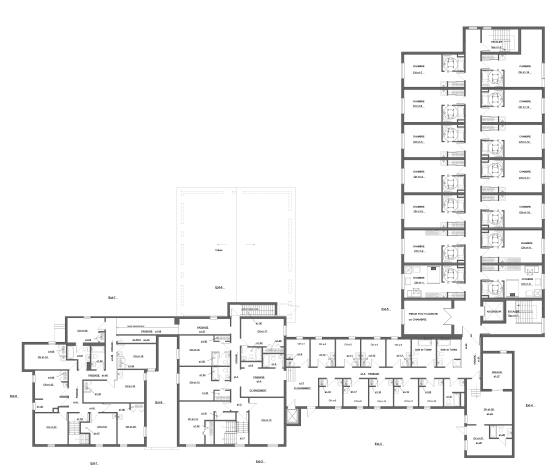

New second floor plan
